Carisma Breeze

Carisma Breeze

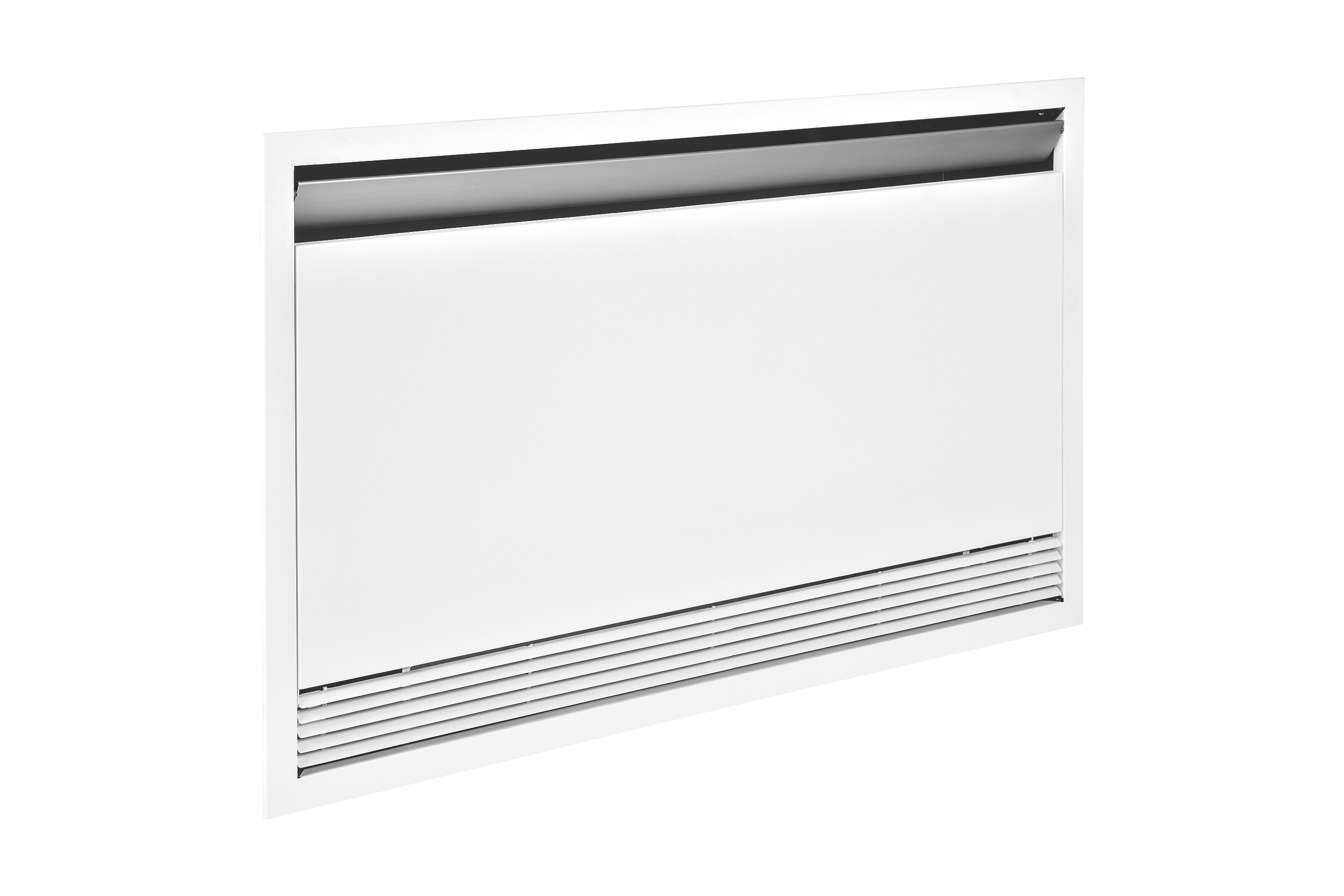

The need to combine functionality with practicality and aesthetics led to the creation of Breeze, a recessed kit designed for Carisma CRC and Carisma CRR fan coils. With Breeze, the fan coil literally 'disappears' into a niche of the wall and you can cover it with a panel that can be painted with your colour of choice, so that it is completely invisible.  In other words, the advantages of a form of air-conditioning that uses natural fluids, with low energy consumption, combined with the benefits of an almost non-existent visual impact. The recessed Breeze kit by Carisma is available in 3 sizes and allows for the recessed installation of Carisma fan coils on the wall. The Breeze solution is available for:  CRC-IV in the following sizes: 2 – 3 – 4 – 5 – 6 and CRR-IV in the following sizes: 2 – 3 – 4  The recessed box is made of galvanised sheet metal and has suitable openings to facilitate the electrical and hydraulic connection of the fan coil. Electronic controls  For vertical fan coils the ambient temperature can be controlled through the use of electronic thermostats installed on board with different solutions depending on needs. The range of controls includes versions for the manual or automatic control of ventilation, control of the water valves or electric resistance, manual/centralised/automatic summer/winter switching. There are versions to control the asynchronous motor and versions to control the inverter electric motor.
 Wall-mounted electronic controls For fan coils and cassettes the ambient temperature can be controlled through the use of wall-mounted electronic thermostats with different solutions depending on needs. The range of controls includes versions for the manual or automatic control of ventilation, control of the water valves or electric resistance, manual/centralised/automatic summer/winter switching. There are versions to control the asynchronous motor and versions to control the inverter electric motor.
 Control and supervision panel for PSM-DI terminal units. Up to 60 (cassette/fan coil units) can be installed in series, managing them with a single intelligent wall-mounted control, by using the serial communication possibilities of the appliances. Set the operation conditions and modes of each individual connected appliance, the switch-on and off time bands for each day of the week and display the operation conditions of each individual appliance from the wall-mounted control(the program can be set for all equipment or for a maximum of two groups of equipment). Two or more intelligent wall-mounted controls are required if connecting more than 60 units. Each unit must be equipped with an MB card. More appliances, with a maximum of 60 units (RS 485 serial connection maximum development of 800 metres) can be managed with the PSM-DI panel, from a single control point.
